Latching Relay-BX100A.1

100A contact switching capability；
Only impulse excitation needed, both for single and double coil；
Low power consumption, small in size；
Contact gap≥3.2mm；
4KV dielectric strength between contact and coil；
Mechanical Endurance＞1million cycles.
Size：56*40*16.5（mm)

Purchase Contact

Data Download

Product appearance 3D structural diagram and other materials

file name	remark	update time

Parameters

Appearance	Cover Color		Black		Remark
Contact	Contact Form		1B/1A		"1B" (Normally closed) as factory default state
	Contact Material		Silvery Alloy
	Contact Resistance		≤1.0mΩ		In accordance with the voltammetry test, 10A constant current is applied
	Rated Load (Resistive)		100A/250VAC		Rated Load (Resistive)	100A 60VDC
	Max. Switching Voltage(AC)		250VAC		Max. Switching Voltage(DC)	60VDC
	Max. Switching Current(AC)		120A		Max. Switching Current(DC)	110A
	Max. Switching Power		25000VA		Rated Switching Power	6000VA
Coil	Rated Coil Voltage		12VDC		Max. Switching Power	6600VA
	Initial Operating Voltage	Closing	≤12VDC
		Release	≤12VDC
	Operating Time	Closing	≤20ms		Single Coil 12V Drive
		Release	≤20ms		Single Coil 12V Drive
	Pulse width		≥100ms
	Rate voltage VDC	Operating Voltage VDC	Releasing Voltage VDC	Max. Voltage VDC	Coil Resistance Ω
					Single Coil/2.5W	Double Coil/5W
	6	≤4.8	≤4.2	18	18.8 X (1±10%)	(9.9±10%) X 2
	9	≤7.2	≤6.3	27	42.2 X (1±10%)	(21.1±10%) X 2
	12	≤9.6	≤8.4	36	75 X (1±10%)	(37.5±10%) X 2
	24	≤19.2	≤16.8	72	300 X (1±10%)	(150±10%) X 2
Performance	Rated Working Temperature		-40℃~70℃		At the limit temperature, it is required to work at the maximum operating frequency for 48H
	Humidity		45%-90%RH
	Mechanical Vibration		10~55HZ Single amplitude 0.35mm		After the test, there should be no loose structure or mechanical damage, and the state of the relay can't be changed.
	Mechanical Shock		500m/S2 11MS		After the test, there should be no loose structure or mechanical damage, and the state of the relay can't be changed.
	Insulation Resistance		≥100MΩ		500VDC
	Dielectric Strength	Between Contacts	3000VAC 1min		No flashover, arcing or insulation breakdown is allowed during the dielectric withstand test. The leakage current shall not be greater than 1mA
		Contact-Coil	4000VAC 1min
	Electrical Life		6×10³		On the condition of 100A/250VAC (resistive load, frequency reference standard), the number of continuous actions.
	Mechanical Life		1×10⁶		The number of consecutive actions under no or light load conditions

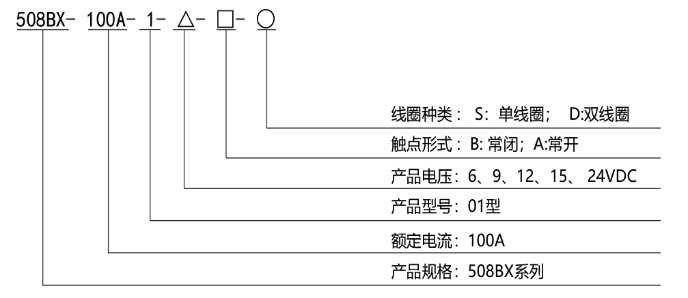

Ordering information

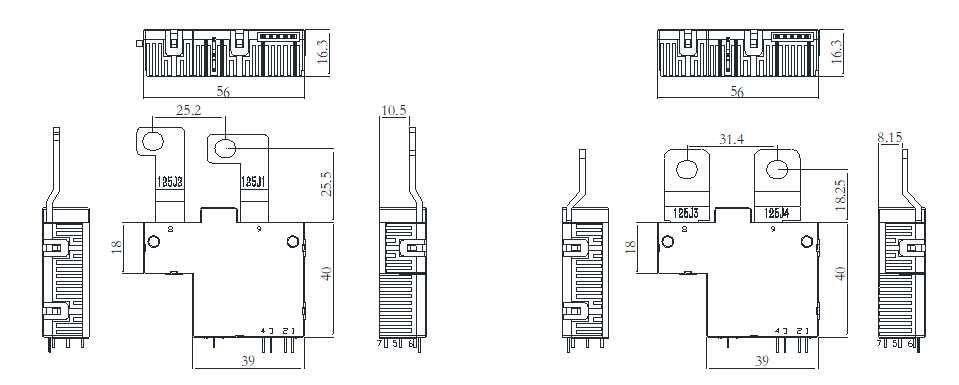

Dimensions and Wiring diagrams (unit: mm)

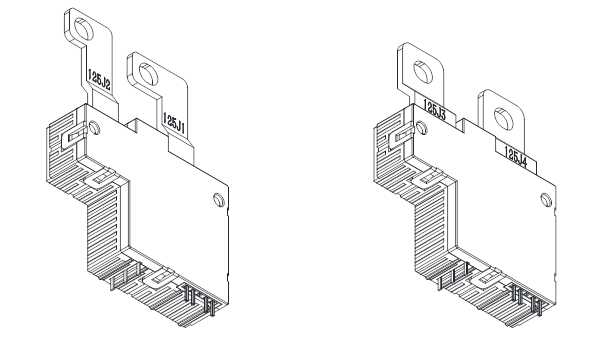

Typical installation method：
