Product appearance 3D structural diagram and other materials

file name	remark	update time

Parameters

Appearance	Shell Color		Black
contact	Contact Form		1A(1B）	"1A" as default
	Contact Material		Silvery Alloy
	Contact Resistance		≤2mΩ	In accordance with the voltammetry test, 10A constant current is applied
	Rated Load (Resistive)		60A/250VAC
	Max. Switching Voltage		250VAC
	Max. Switching Current		60A
	Max. Switching Power		15000VA
.	Rated Voltage of Coil		9VDC
	Initial Operating Voltage	Closing	≤9VDC
		Release	≤9VDC
	Operating Time	Closing	≤5.5ms	24V drive
		Release	≤4.0ms	24V drive
	Coil Resistance		54Ω±10%	Customized
	Impulse Width		100ms
	Rated Power of Coil		1.5W
Performance	Rated Working Temperature		-40℃~70℃	At the limit temperature, it is required to work at the maximum operating frequency for 72H
	Humidity		45%-90%RH
	Mechanical Vibration		10~55HZ Single amplitude 0.35mm	After the test, there should be no loose structure or mechanical damage, and the state of the relay can't be changed.
	Mechanical Shock		500m/S2 11MS	After the test, there should be no loose structure or mechanical damage, and the state of the relay can't be changed.
	Insulation Resistance		≥100MΩ	500VDC
	Dielectric Strength	Between Contacts	2000VAC 1min	No flashover, arcing or insulation breakdown is allowed during the dielectric withstand test. The leakage current shall not be greater than 1mA
		Contact-Coil	4000VAC 1min

Performance	Electrical Life		1×10⁴		On the condition of 60A/250VAC (resistive load, frequency reference standard), the number of continuous actions.
	Mechanical Life		1×10⁶		The number of consecutive actions under no or light load conditions

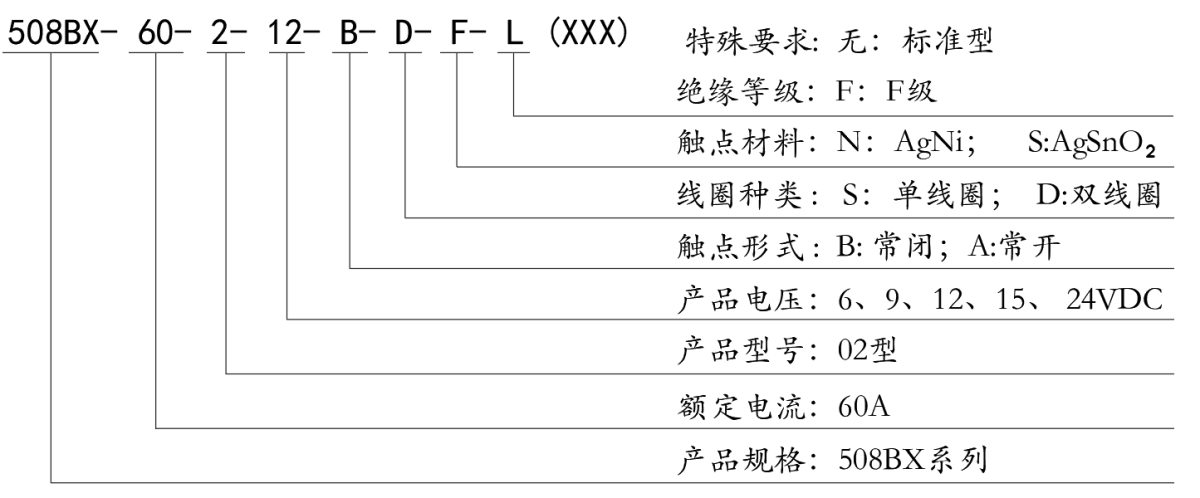

How to order：

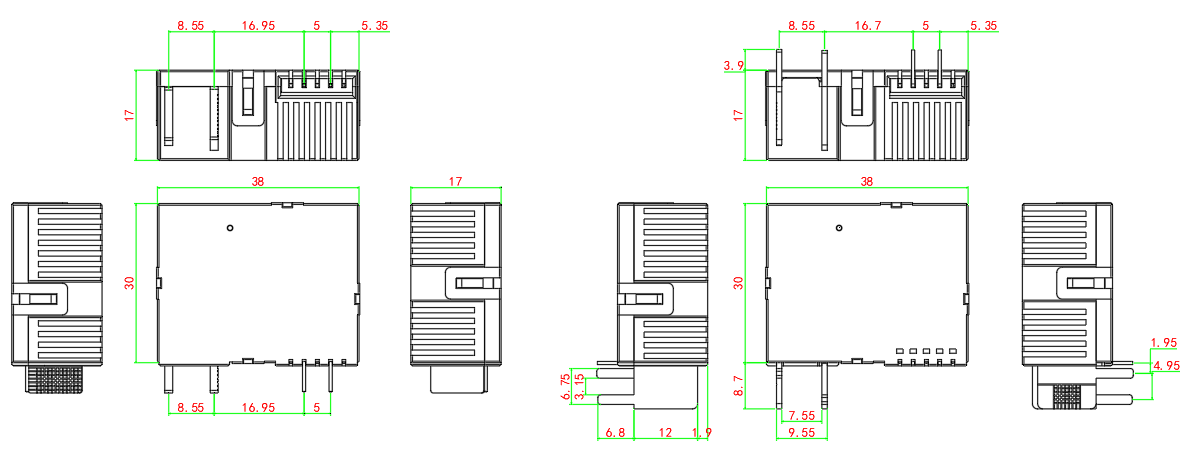

Dimension and Diagram（unit：mm）

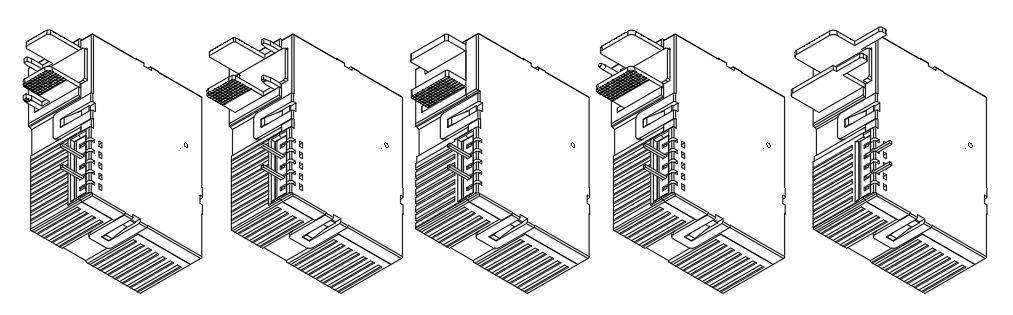

Typical Installation Method
