Relays for charging piles and photovoltaicsZX90-2-60A

  • It is applicable to fields such as charging piles, photovoltaic inverters, smart furniture, home appliances, and industrial control.
  • Low power consumption and small size;
  • PCB - type installation;
  • The withstand voltage between contacts and coils is ≥ 4KV;
  • The mechanical life is ≥ 1 million times.
  • Dimensions:32*27.2*20.2(mm)
Purchase Contact
Data Download
Dear customer, hello:
If you need to consult more detailed product issues, please leave your contact information, and we will arrange professional personnel to provide you with further services. Thank you for your attention to Gretel intelligent products!

Continue downloading

Product appearance 3D structural diagram and other materials
file name remark update time
Parameters

Appearance Shell color Black Remarks
Contact Parameters Contact form 1A/1Z A is of normally open type / Z is of changeover type
Contact material Silver alloy
Initial contact resistance ≤50mΩ ≤50mΩ (1A 24VDC)
Contact gap 2~2.5 mm
Contact load (resistive) 60A/277VAC 60A/30VDC(DC)
Maximum switching voltage 277VAC 30VDC
Maximum switching current 60A 60A
Maximum switching power 16620VA 1800VA
Minimum contact capacity 100mA/5VDC 100mA/5VDC
Maximum inrush current 100A 100A
Maximum inrush sustained current time ≤3ms ≤3ms
Remarks: The above values are initial values.
Coil Specification Table Rated voltage          VDC Pull - in voltage  ¹   VDC Release voltage ¹  VDC Maximum allowable voltage²    VDC Coil resistance  Ω/(at 23±1℃)
0.9W/I(A) 1.2W/I(A)
5 ≤3.75 ≥0.25 6.5 28±10%/200mA 20.8±10%/240mA
9 ≤6.75 ≥0.45 11.7 90±10%/100mA 67.5±10%/140mA
12 ≤9.0 ≥0.6 15.6 160±10%/75mA 120±10%/100mA
18 ≤13.5 ≥0.9 23.4 360±10%/50mA 270±10%/67mA
24 ≤18.0 ≥1.2 31.2 600±10%/40mA 480±10%/50mA
Environmental Performance Parameters Operating temperature -40℃~85℃ The operating temperature range represents the temperature range within which the relay can operate continuously within the operating voltage range of the coil (no water droplet condensation at low temperatures).
Humidity 45%-85%RH
Storage temperature -40℃~85℃ The storage temperature range represents the temperature range within which the relay can be stored without damage (no water droplet condensation at low temperatures).
Mechanical vibration Vibration durability capacity 10~55HZ, amplitude 1.0mm In the non - energized state, the relay undergoes vibration for 2 hours in each direction of the three axes with an amplitude width of 1.5mm and a frequency of 10 - 55Hz. After the experiment, there should be no abnormalities in the appearance and structure, and the electrical performance should meet the specified requirements.
Vibration resistance (maloperation) 10~55HZ, amplitude 1.5mm In the energized/released state, the relay undergoes vibration for 5 minutes in each direction of the three axes with an amplitude of 1.5mm and a frequency of 10 - 55Hz. The contact misoperation should not exceed 1ms. After the experiment, the appearance and structure should not be abnormal, and the electrical performance should meet the specification requirements.
Environmental performance parameters Mechanical shock Impact durability capacity 981m/S2 The relay withstands two impacts in each of the six directions of the three axes with an acceleration of 981m/s² and an action time of 6 milliseconds. There is no abnormality in the product structure and performance, which complies with IEC 68 - 2 - 27 Test Ea.
Impact resistance (malfunction) 98.1m/S2 In the energized/released state, the relay shall withstand the impact of an acceleration of 98.1m/s² and a duration of 11 milliseconds in six directions of three axes twice each, and the contact misoperation shall not exceed 1 millisecond.
Cold resistance Cold resistance in use When there is no input state, the relay should be continuously maintained at a temperature of -30 ± 2℃ in the constant temperature box for 2 hours. When conducting the rated voltage test on the operating circuit in the original state, the relay should operate normally. (There is no water droplet condensation phenomenon at low temperature.)
Cold resistance in storage The relay should be continuously maintained at a temperature of -40 ± 2℃ in the constant temperature box for 72 hours. Then, after removing water droplets at room temperature for 1 - 2 hours, conduct structure, action, insulation impedance and withstand voltage tests, and the results should meet the requirements. (There is no water droplet condensation phenomenon at low temperature.)
Heat resistance Heat resistance in use With the rated voltage provided on the operating circuit and the rated current provided at the contact part, the relay should be continuously maintained at a temperature of 85 ± 2℃ for 2 hours. Conduct the relay action test in the original state, and the results must meet the specification requirements.
Heat resistance in storage The relay should be continuously maintained at a temperature of 85 ± 2℃ in the constant temperature box for 16 hours. After placing it at normal temperature and humidity for 1 - 2 hours, conduct structure, action, insulation resistance and withstand voltage tests, and the results should meet the requirements.
Moisture resistance The relay should be continuously maintained in an environment with a temperature of 40 ± 2℃ and a relative humidity of 90 - 95% for 48 hours. Then, place it at normal temperature and humidity for 1 - 2 hours, conduct structure, action, insulation impedance and withstand voltage tests, and the results should meet the requirements.
End-foot characteristics Terminal strength Load 300 grams in the horizontal direction for 1 minute, and after the test, the terminal pins should not have any looseness or bending.
Soldering test "At a temperature of 260 ± 10℃, for a time of 5 ± 0.5 seconds, immerse the front end of the tinned terminal by 2 - 3mm, and the tinned area should reach more than 90%."
Solder heat resistance "When the terminal pins are immersed in a 350℃ soldering furnace for 3 seconds, the relay must meet all electrical and mechanical specification requirements, and the appearance should not change."
Electrical performance parameters Coil temperature rise ≤50K When the relay is unloaded, apply the rated voltage to the coil. After the temperature is stable, measure the temperature rise, which should not exceed 50℃ (excluding the ambient temperature).
Contact temperature rise ≤50K Apply the rated current to the contacts and test after the thermal equilibrium is stable.
Pull-in time (rated voltage) ≤15ms Excluding the contact bounce time.
Release time (rated voltage) ≤15ms Excluding the contact bounce time.
Insulation resistance ≥1000MΩ(500VDC) Between the open contacts, between the contacts and the coil.
ielectric Withstand Voltage Contact - Contact 1500VAC 1min 1500VAC, 50/60 Hz (1 minute).
Contact - Coil 4000VAC 1min 4000VAC, 50/60 Hz (1 minute).
Heat resistance and flame retardancy F-class insulation level Six - sided Glow - wire
Electrical life 0.6×10³ 60A 240VAC pure resistive load, 1S on, 9S off
1×10 50A 240VAC pure resistive load, 1S on, 9S off
5×10 40A 240VAC pure resistive load, 1S on, 9S off
Mechanical life 1×106 Number of continuous operations without load Frequency: 300 times per minute
Security authentication Certification type test conditions
1.5W 2.25W
UL NO:50A 277Vac/ 60A 277Vac/ 60A 48VDC/ 2HP 240VAC
T∪V NO:50A 277Vac/ 60A 277Vac/ 60A 48VDC/ 2HP 240VAC
CQC NO:50A 277Vac/ 60A 277Vac/ 60A 48VDC/ 2HP 240VAC
Remarks: (1) For the loads without specified temperature in the table, the average ambient temperature is room temperature;                                                                                                                                (2) The detailed test conditions for each load are different, so the actual number of electrical life cycles varies.

Structure
Installation method PCB board type
Weight Approximately 30g
Packaging structure Solder mask type Sealed type
Sampling inspection standard GB2828-2012, with General Inspection Level  and AQL-0.65
Packaging method Incoming material packaging form The inner packaging is in the form of plastic tube-shaped boxes, and the outer packaging is with sturdy cartons.
Transportation regulations During the product transportation, attention should be paid to preventing heavy pressure, dropping, moisture, and heat.

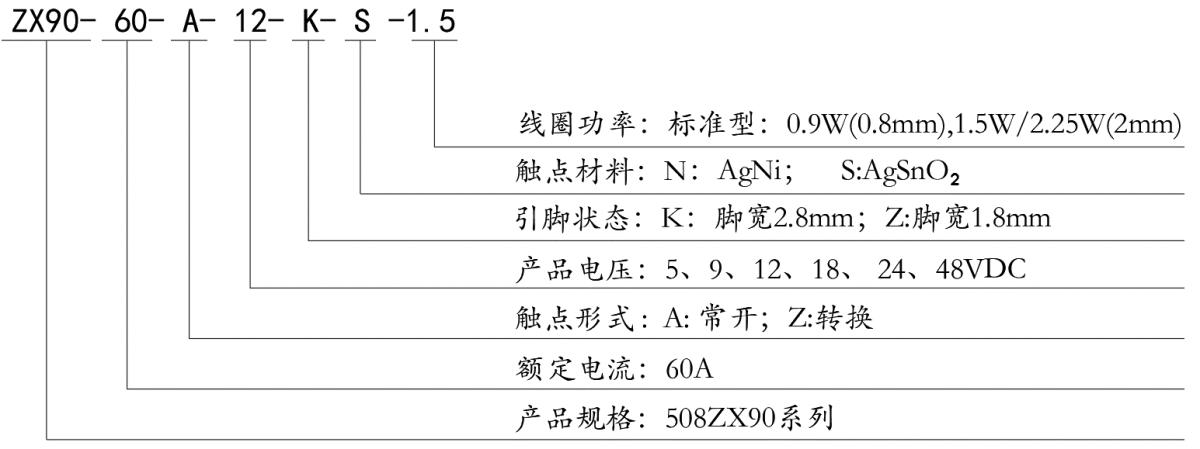

How to order:

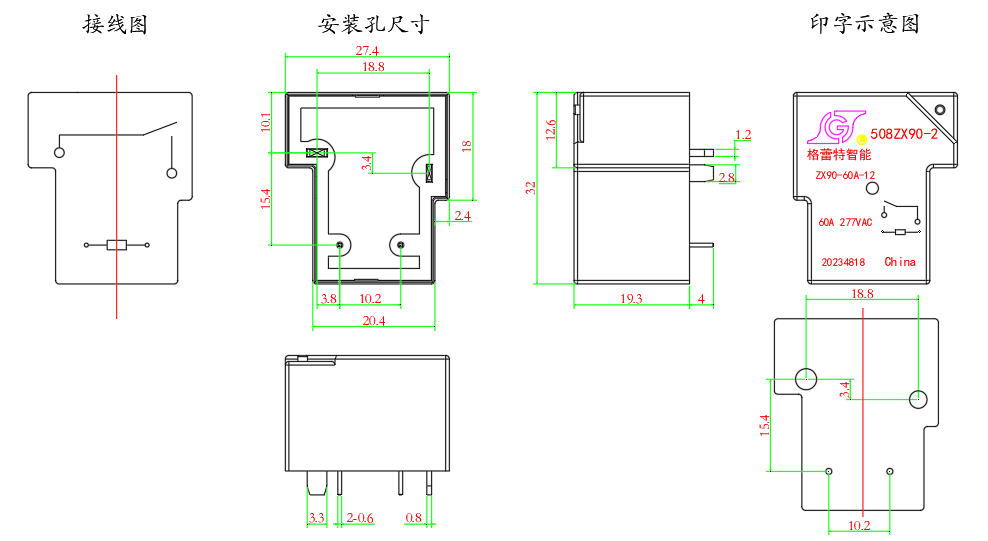

Dimension and Diagram(unit:mm)
